What Is A Solar Water Heater?

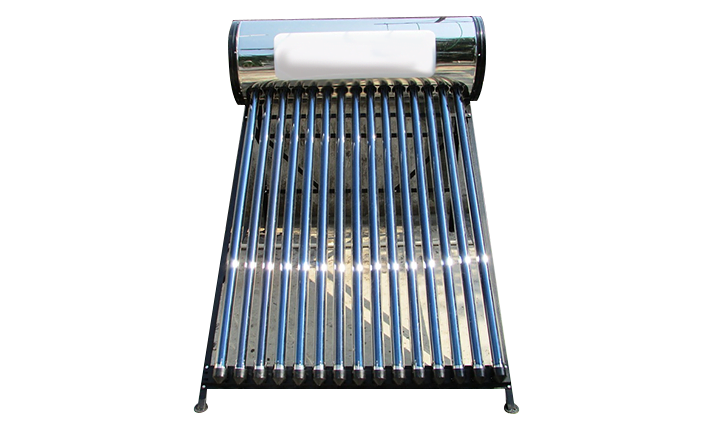

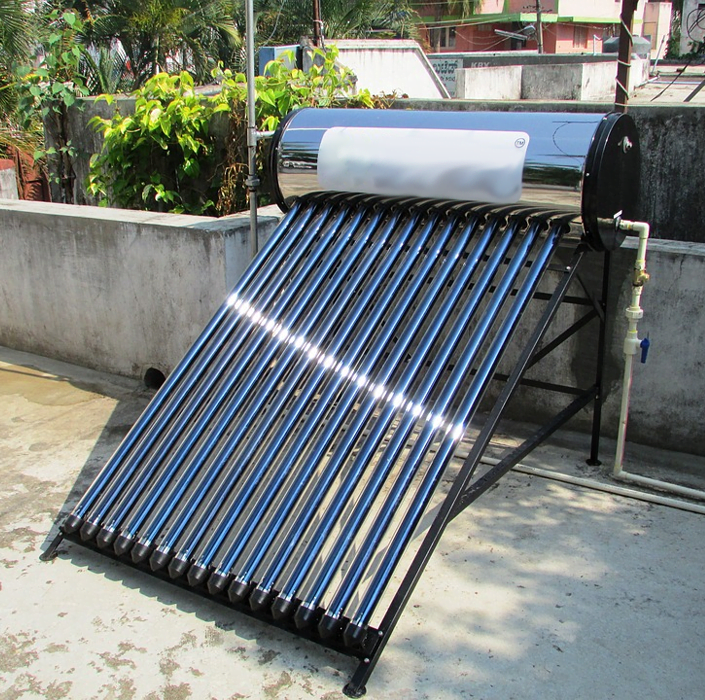

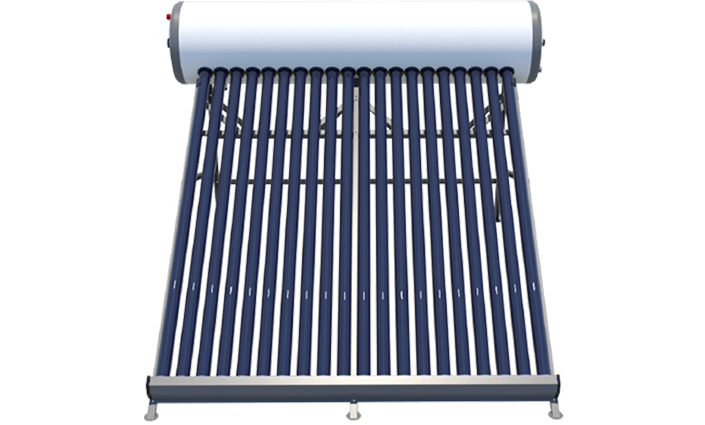

A solar water heater is a device designed to produce hot water by harnessing solar energy. A typical system consists of a solar collector connected to a water storage tank, usually installed on the rooftop of a building. In such systems, the water can be heated in two ways: either directly, as it circulates from the tank through the collector, or indirectly, using a high-capacity heat-transfer fluid that absorbs heat in the collector and transfers it to the water in the tank through a series of tubes. Solar water heaters can be classified as active or passive. Active systems rely on mechanical pumps and controllers to circulate the heat-transfer fluid and manage the system, while passive systems operate without any mechanical assistance, transferring heat naturally from the collector to the water.
Active and passive systems
Mechanical pumps and differential controllers play a key role in active solar hot water systems, regulating the movement of the heat-transfer fluid or water between the solar collector and the storage tank. These controllers monitor the temperature difference between the collector and the water in the tank. When the tank water is cooler than the collector, the controller activates the pump to circulate the fluid. Pumps can either run on mains electricity or be powered directly by solar photovoltaic panels.
Some solar-powered systems circulate fluid automatically when sunlight is available, storing the heated water in well-insulated tanks for use in space heating at night. Other systems incorporate mains electricity as a backup for cloudy days or nighttime operation. Unlike passive systems, the flow in active systems is not reliant on gravity. This allows water storage tanks to be installed in locations that minimize heat loss, such as inside the roof area. Consequently, these tanks can be integrated with household hot water cylinders, enabling the solar system to pre-heat water for space heating during colder months.
Passive solar hot water systems operate without pumps or controllers, relying instead on gravity and natural convection. They are most effective in warm climates without freezing nights or harsh winters. One common passive design is the thermosiphon system, where cold water flows downward due to gravity into the solar collector, is heated by the Sun, and then rises back into the storage tank through convection. Another type is the integrated collector storage (ICS) system, in which the collector itself forms the top portion of the storage tank, directly heating the water contained within.
Design and efficiency
The performance of a solar hot water system depends primarily on the efficiency of its collector and the overall system design. To ensure optimal output, the system must be carefully sized—both the collector and the storage tank should match the expected hot water demand. While the efficiency of a single component, such as the solar absorber, determines the performance of individual collectors, the efficiency of the entire system is influenced by multiple factors. These include water and ambient temperatures, system configuration, insulation, water volume, collector type, heat-exchange mechanism efficiency, installation location, local weather conditions, and the amount of sunlight received.
Additionally, all solar water heating systems must incorporate safety features such as temperature control and overheating prevention, particularly when installed in regions with warmer climates.
How does a solar water heater work?
Light is absorbed by solar collector
A solar water heater captures sunlight through a roof-mounted collector and converts it into usable heat.
Heat transferred to water tank
A circulating pump transfers the heat to the water tank, but only when necessary. The thermal regulator activates the pump only if the collector is hotter than the tank water. This prevents unnecessary energy use and protects the pump from overheating.
Heat transferred to water tank
A circulating pump transfers the heat to the water tank, but only when necessary. The thermal regulator ensures that this transfer occurs only when the collector is hotter than the water in the tank. This prevents the pump from wasting energy and protects it from overheating.
Insufficient sunlight? Back-up heating system
The system preheats the water using solar energy, and when sunlight is insufficient, a backup system ensures it reaches the desired temperature. This guarantees consistent hot water throughout the year.
